Customer test - quality contol with a vision system

Automated PCB Inspection with igus Gantry and Vision System Integration

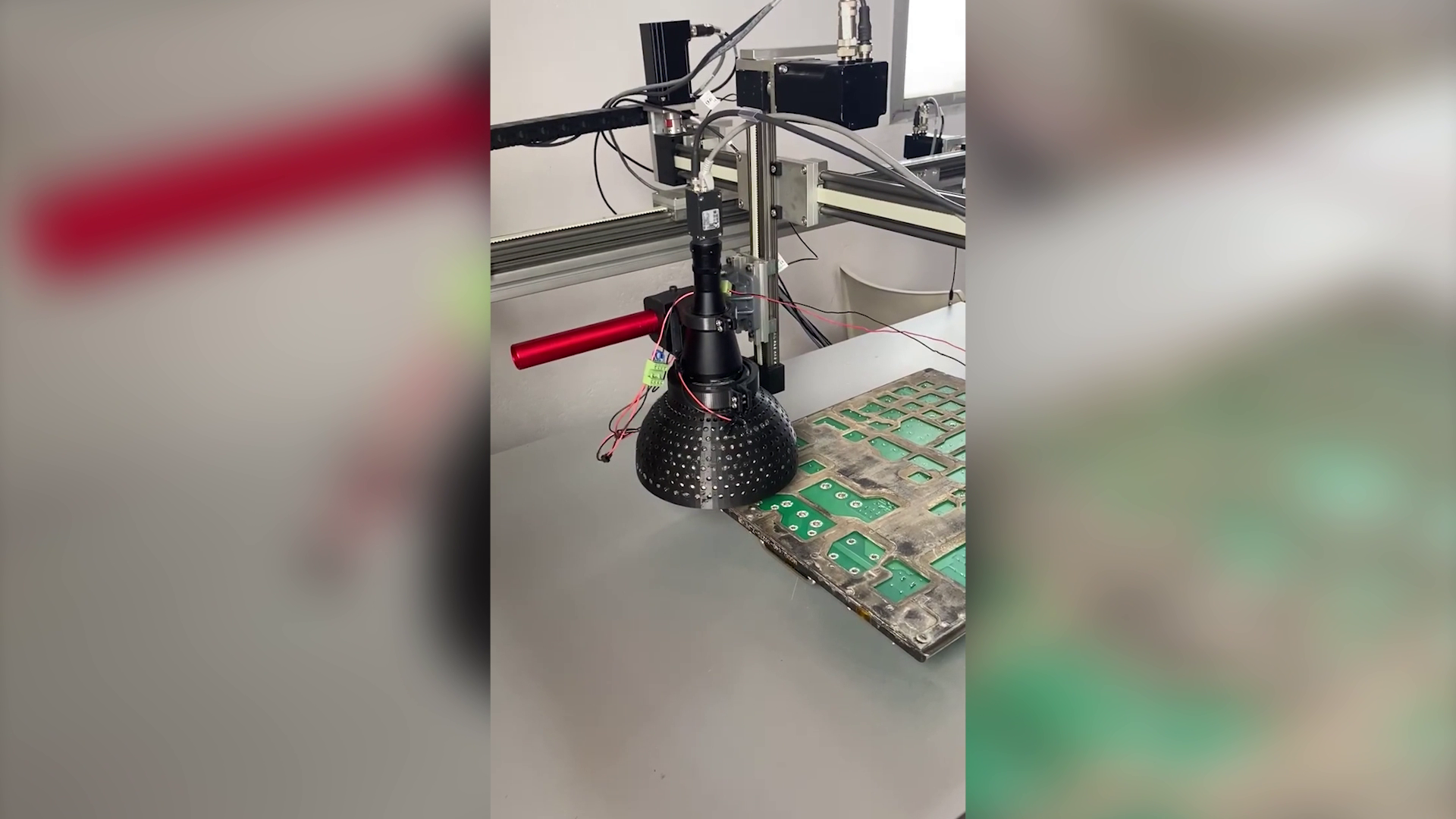

Automated quality control using vision systems is gaining popularity due to its potential for significant cost savings. In this customer test, a vision system was successfully integrated with an igus gantry robot to automate circuit board inspection. The gantry system includes pre-configured drylin linear modules, linear axes, and igus stepper motors, enabling precise and multi-dimensional movements. igus gantries, made from tribologically optimized plastics, provide reliability at low costs, making them ideal for inspection processes and a variety of other automation tasks.

What is the Application?

The solution facilitates automated PCB quality control, leveraging gantry robots and vision systems to enhance inspection accuracy and efficiency.

What are the Advantages of the Solution?

• Enhanced Precision: Vision systems ensure accurate defect detection.

• Cost Efficiency: Optimized materials reduce operational expenses.

• Customizable Integration: Gantries can adapt to varied inspection workflows.

What are the Advantages of the Robot?

The igus gantry provides:

• Multi-Dimensional Movement: Enables precise navigation across inspection zones.

• Reliable Components: Built for demanding industrial environments.

• Ease of Assembly: Pre-configured design simplifies installation.

Optimizing Quality Control with Gantries and Vision Systems

By integrating igus gantries with customer vision systems, this solution streamlines PCB inspection processes, ensuring accuracy and reducing costs. The combination of advanced automation and durable components delivers reliable, scalable results for manufacturers seeking efficient quality control workflows.
